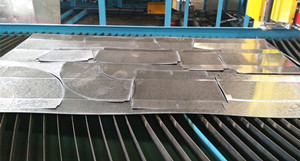

Plasma Cutting Machine
Machine introduction and Technical Parameter
MEIFORMER
company CNC plasma machine is especially design for duct industry. It
is used in cutting all kinds of duct joint. it will be short the duct
joint manufacture time, fast the delivery time. Because adopt computer
automatically typeset, it will save the material. MEIFORMER plasma
machine choice Strong and steady frame, have strong function duct
software, advanced CNC system and world famous plasma power supply U.S.A
HYPERTHERM company’s product, let our product are high quality
NEW TECHNOLOGY AND INNOVATIVE DESIGN
The M-3000 features an economical belt drive system.
Model
Thickness
Tolerance
Max speed
Cutting Table
Weight
Dimension
M-3000
0.4-9
±0.5
20M/Min
1500×3000
1300
4170×2060×1480
M-6000
0.4-9
±0.5
20M/Min
1500×6000
1800
7170×2060×1480
（mm）
（mm）
（M/Min）
（mm）
（KG）
（mm）
Machine Feature:
Hypertherm plasma; - USA POWERMAX 45 plasma cutter
CNC touch computer control System
Duct special software: CAMDUCT PM2000 software
Cutting Thickness:Max10mm
Working area 1500x3000 mm,
CAM DUCT software pm2000 with ventilation library standard duct joint cutting software

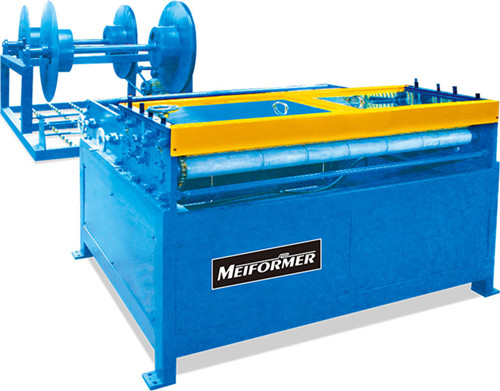

Plasma feeding system
This machine is desighned to feed a plasma cutting table.it have drive and beading roll to feed and remove coil set and beading from material.it is comprised of a drive motor.the operator uses an on/off switch attached to an electrical cable to adwance the material.operate easy and convenient.this allows the operator to feed the material to proper location along the plasma table.
